Sheet Feeding Paper Bag Machine

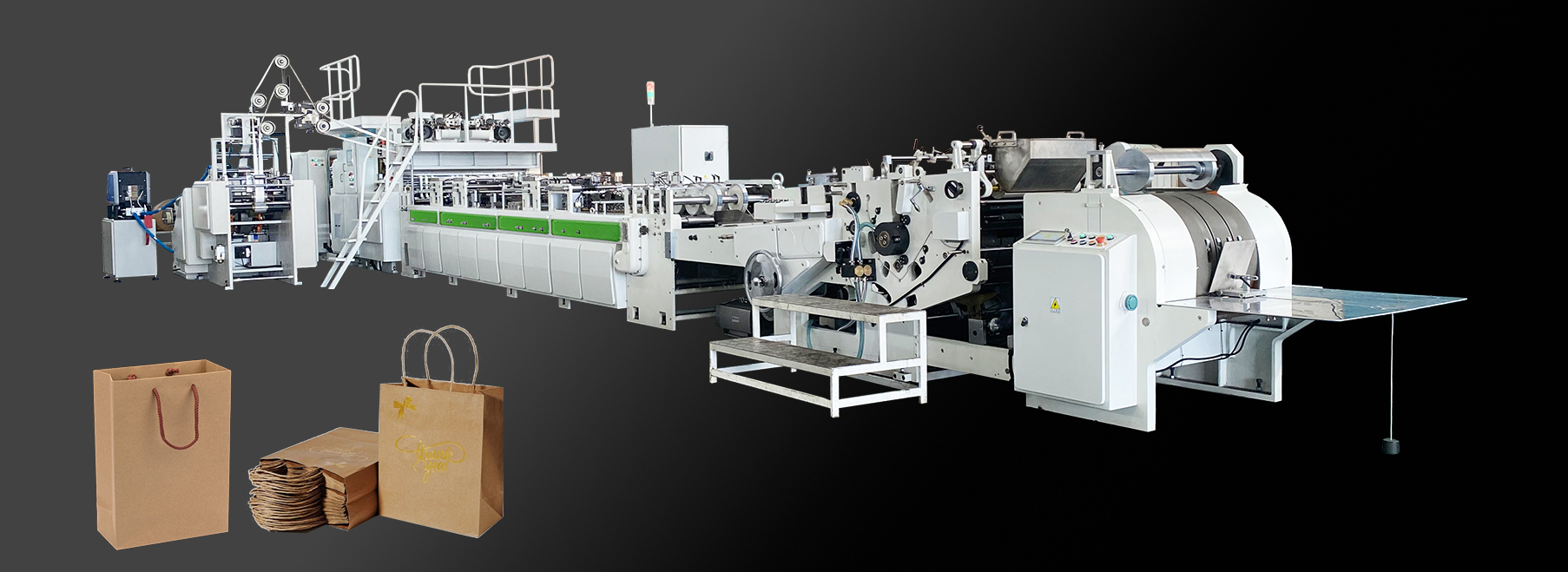

Automatic sheet-feeding paper bag making machine is suiable for the mass bag production, it is the first choice of medium and top grade handbag device. The product adopts mechanical, electricity, light,gas integration technology, setting a number of its proprietary technology, use sheet paper as raw material, can one-time finish; paper feeding, positioning, die-cutting, reinforced paper gluing, reniforced paper pasting, top folding, tube forming, gusset forming, square bottom folding and gluing automatic, and then compaction output, The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process.
using the PLC programmable control, frequency control technology to realize the integral multi-dimensional control, more centralized control and single point remote control operating system. with characteristics of good quality and high efficiency, its technology ranks leading level in domestic similar products.

Paper Bag Samples

Sheet Feeding Paper Bag Machine Detail

Video
Technical Sheet
Model RKDZ-220T RKDZ-350T RKDZ-450T
Paper bag width 130-250mm 180-350mm 220-450mm
Paper width 490-770mm 600-1040mm 600-1240mm
Paper length 260-450mm 340-600mm 350-600mm
Bag bottom width 60-130mm 80-150mm 90-170mm
Paper thickness 100-190g/m2 120-200g/m2 120-220g/m2
Bag mouth fold width 40-50mm 40-60mm 40-60mm
Max. speed 40-75pcs/min 40-75pcs/min 40-75pcs/min
Twisted handle diameter ø4-6mm ø4-6mm ø4-6mm
Handle patch length 114mm 152mm 188mm
Handle patch width 40-50mm 40-55mm 40-55mm
Handle Height(with sheet) 160-185mm 170-185mm 170-195mm
Patch paper thickness 100-140g/m2 120-150g/m2 120-180g/m2
Patch paper roll width 80-100mm 80-110mm 80-110mm
Power 20KW, 380V/50HZ 22KW, 380V/50HZ 22KW, 380V/50HZ
Weight 18000KGS 20000KGS 22000KW
Dimension L14000*W5000*H3100mm L15000*W5500*H3100mm L16000*W6000*H3100mm
Equipment Details
Features

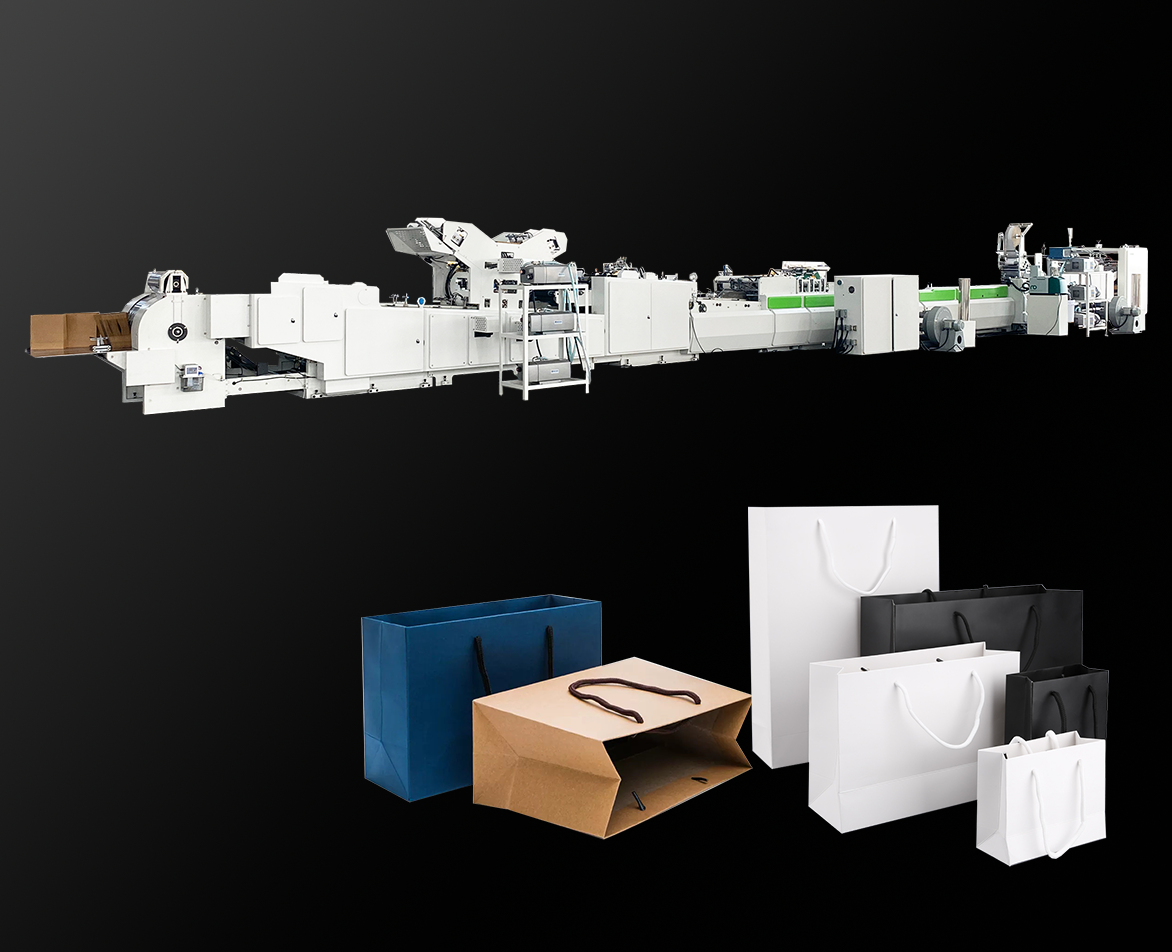

Sheet feeding paper bag machine adopts sheet paper, reel reinforced paper and twist rope paper as material to produce paper bags in one time. The process contains handle making, handle pasting, top folding (or without top folding), tube forming, gusset folding, bottom pasting, compaction output or reinforced paper pasting, top folding, tube forming, gusset folding, eyelet punching, bottom pasting and compaction output. Three bag types are all available on this machine. Based on the traditional machine mechanical handle/patch cutting unit, this machine updated to servo cutting system which has a much more compact structure. Shorter setup time, safer working condition, bigger and convenient operation space are all its advantages.
Partner
Equipment Details

FAQ

  • Q What is a V Bottom Paper Bag Making Machine?

    A A V Bottom Paper Bag Making Machine is a machine used to produce paper bags with a V-shaped bottom, making them steady and uncomplicated to stand upstanding.
  • Q What types of paper can be used with a V Bottom Paper Bag Making Machine?

    A Mostly, any paper appropriate for creating packs can be utilized with this machine. This incorporates kraft paper, covered paper, and overlaid paper.
  • Q What are the benefits of using a V Bottom Paper Bag Making Machine?

    A Some benefits of utilizing this sort of machine conclude the capacity to deliver bags with a more steady base, which can hold heavier things without tipping over. This makes them ideal for supermarkets, malls, and other retail conditions.
  • Q How does a V Bottom Paper Bag Making Machine work?

    A The machine works by taking care of a roll of paper into it, which is then cut, collapsed, stuck, and framed into a pack shape. The V-shaped bottom is made through a progression of collapsing and creating tasks.
  • Q What are some features to consider when choosing a V Bottom Paper Bag Making Machine?

    A Some elements should consider, such as the speed of the machine, the size scope of bags it can produce, the nature of the completed item, the simplicity of activity and repair, and the degree of mechanization. Furthermore, you might need to consider the supplier's professionality and client assistance administrations.
